Extension Tubes

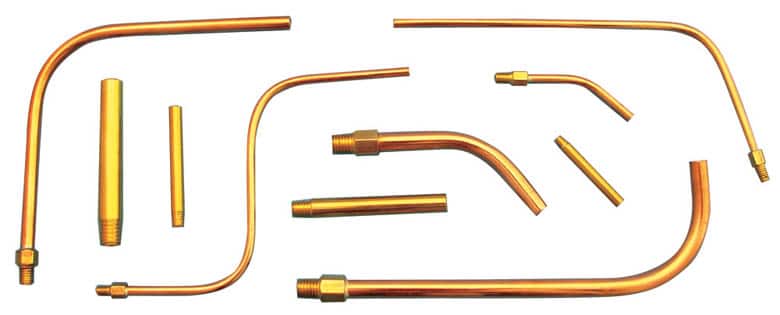

Extension Tubes
- Extension Tubes can be used in a wide variety of our tapped Coolant Nozzles
- Extension Tubes install in seconds and make aiming a breeze
- Choose rigid brass Extension Tubes to direct coolant straight to the cutting edge
- Choose bendable copper Extension Tubes to direct coolant around obstructions
- Cut tube to desired length to suit your application
Extension Tubes can be used in a wide variety of nozzles including; ScrewBalls, JetBolts, BrassBalls, BlackEyes, TurretJets, JetTubes, SweatJets, CapJets & BugEyes.

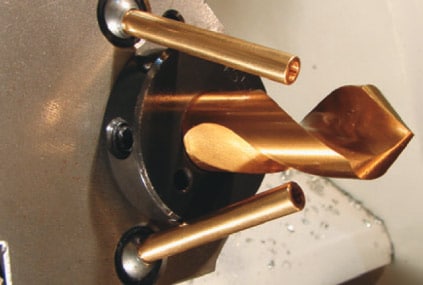

Brass Extension Tubes are ideal for directing coolant straight to the cutting edges.

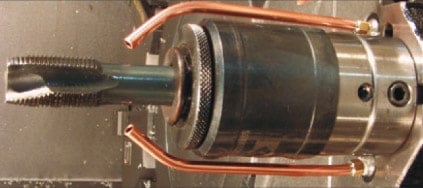

Bendable Extension Tubes allow coolant to be directed around obstructions such as floating tap holders (above) or insert clamps (below)
- Material: Brass
- Maximum Pressure: 500 psi (33 bar)
- Maximum Operating Temperature: 300°F (150°C)
- Material: Hex Fitting: Brass Tube: Copper Solder: Lead-free
- Maximum Pressure: 500 PSI (33 bar)
- Max Operating Temperature: 300°F (150°C)
| RIGID BRASS EXTENSION TUBES Dimensions in MILLIMETERS (except as noted) | ||||||
| PART NO. | THREAD “E” | LENGTH “L” | INSIDE Dia. “d” | Pkg Qty | Configuration | |
| SBT09705 | M3.5 X .6 | 30mm | 2mm | 5 |  |
|
| SBT09710 | M4 x .7 | 30mm | 2mm | 5 | ||
| SBT09720 | M5 x .8 | 40mm | 3mm | 5 | ||
| SBT09730 | M6 x 1.0 | 50mm | 4mm | 5 | ||
| SBT09735 | M7 x 1.0 | 55mm | 5mm | 5 | ||
| SBT09740 | M8 x 1.25 | 55mm | 5.5mm | 5 | ||
| BENDABLE COPPER EXTENSION TUBES Dimensions in INCHES (except as noted) | ||||||
| PART NO. | THREAD “E” | “C” Hex | Tubing Size “A” | Tubing ID “d” | Pkg Qty | Configuration |
| ET09805 | M3.5 x .6 | 3/16″ | 1/8″ | .07″ | 5 |  |
| ET09810 | M4 x .7 | 3/16″ | 1/8″ | .07″ | 5 | |
| ET09820 | M5 x .8 | 1/4″ | 3/16″ | .12″ | 5 | |
| ET09830 | M6 x 1.0 | 1/4″ | 3/16″ | .12″ | 5 | |
| ET09835 | M7 x 1.0 | 5/16″ | 1/4″ | .18″ | 5 | |
| ET09840 | M8 x 1.25 | 5/16″ | 1/4″ | .18″ | 5 | |
| ET09845 | M8 x .5 | 6mm | 3/16″ | .12″ | 5 |  |
| ET09850 | M8 x .5 | 7mm | 1/4″ | .18″ | 5 | |
| ET09855 | M10 x .5 | 6mm | 3/16″ | .12″ | 5 | |
| ET09860 | M10 x .5 | 8mm | 1/4″ | .18″ | 5 | |
| ET09865 | M12 x .5 | 6mm | 3/16″ | .12″ | 5 | |
| ET09870 | M12 x .5 | 8mm | 1/4″ | .18″ | 5 | |
| ET09875 | M12 x .5 | 10mm | 5/16″ | .25″ | 5 | |
