Product Description
- Fully adjustable to correct for machine misalignment
- Hardened alloy steel
- Precision ground for perfect alignment
- Holds standard drill bushings

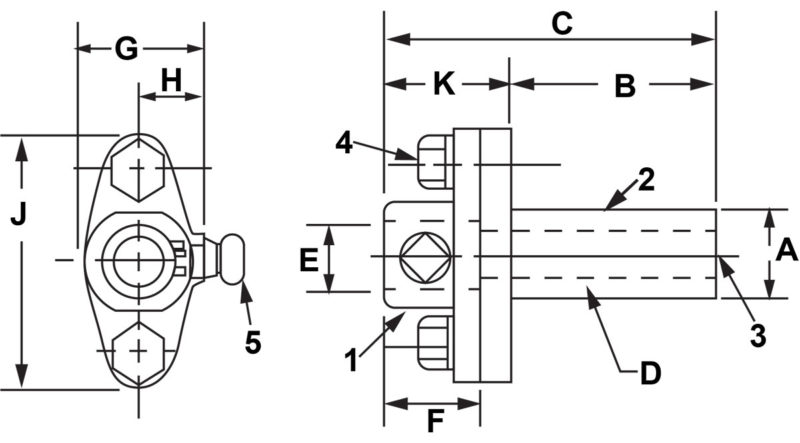

| CAT. NO. | A | B | C | D | E | F | G | H | J | K |
| ROVI-AFDH00 | 5/8″ | 1-1/2″ | 2-13/32″ | 3/8″ | 1/2″ | 11/16″ | 15/16″ | 1/2″ | 1-13/16″ | 15/16″ |
| ROVI-AFDH1 | 3/4″ | 2″ | 3-5/32″ | 1/2″ | 5/8″ | 7/8″ | 1-5/16″ | 11/16″ | 2-7/16″ | 1-5/32″ |
| ROVI-AFDH2 | 1″ | 2″ | 3-7/16″ | 11/16″ | 1″ | 1-1/8″ | 1-5/8″ | 7/8″ | 2-15/16″ | 1-7/16″ |
| ROVI-AFDH3 | 1-1/4″ | 2-3/4″ | 4-1/2″ | 3/4″ | 1-1/4″ | 1-3/8″ | 2-3/8″ | 1-3/16″ | 4″ | 1-3/4″ |
| ROVI-AFDH4A | 1-1/2″ | 3-1/4″ | 4-13/16″ | 3/4″ | 1″ | 1-5/32″ | 1-7/8″ | 15/16″ | 3-3/4″ | 1-9/16″ |
| ROVI-AFDH4B | 1-1/2″ | 3-1/4″ | 5-7/16″ | 1-1/16″ | 1-1/2″ | 1-19/32″ | 2-5/8″ | 1-5/16″ | 4-3/4″ | 2-5/32″ |
1)Body – 2)Shank – 3)Shank Screw – 4)Clamp Screw & Washer – 5)Drill Holder Screw
See Diagram
If you need individual parts, please call us for availability and quote 800-423-5145
Add To Cart
$215.00 – $610.00
