Product Description
These Brookfield Style Tool Holders are at hand for fast, accurate set-ups. Just clamp the tool – float to center -and tighten. Saves the aggravation of hunting for the right size bushing or collet. Holds drills, counter bores, reamers and other tools axially true. Three wider range sizes of the original adjustable floating tool holder cover a range from 1/64″ to 1″ diameter.
- Eliminates Bushings
- Holds Any Size Drill Securely
- Reversible Clamp
| CAT. NO. | A | B | C | D | E | CAPACITY | |
| MIN. | MAX. | ||||||
| ROVI-VAFDH00 | 5/8″ | 1-1/8″ | 1″ | 2″ | 13/32″ | 1/64″ | 1/2″ |
| ROVI-VAFDH0 | 3/4″ | 1-1/2″ | 1-1/4″ | 2-5/8″ | 7/16″ | 1/16″ | 3/4″ |
| ROVI-VAFDH2 | 1″ | 1-3/4″ | 1-5/8″ | 3-1/2″ | 11/16″ | 1/8″ | 1″ |

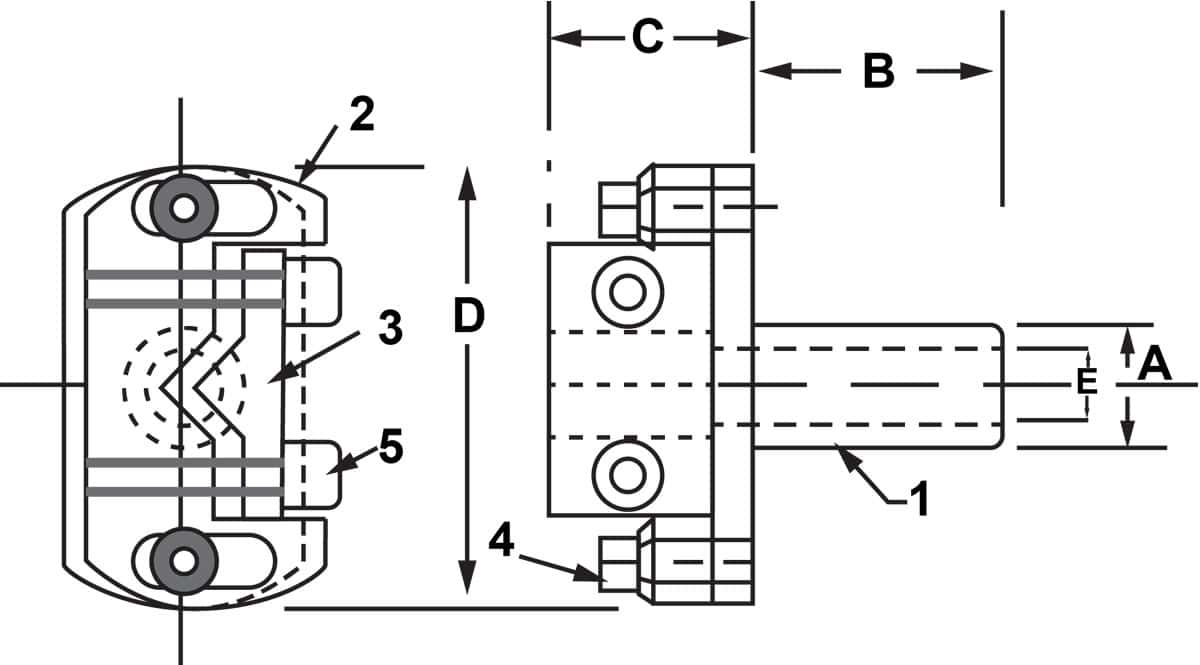

Diagram Key
- Shank
- Body
- Clamp
- Body Screws & Washers
- Clamp Screws
If you need individual parts, please call us for availability and quote 800-423-5145
