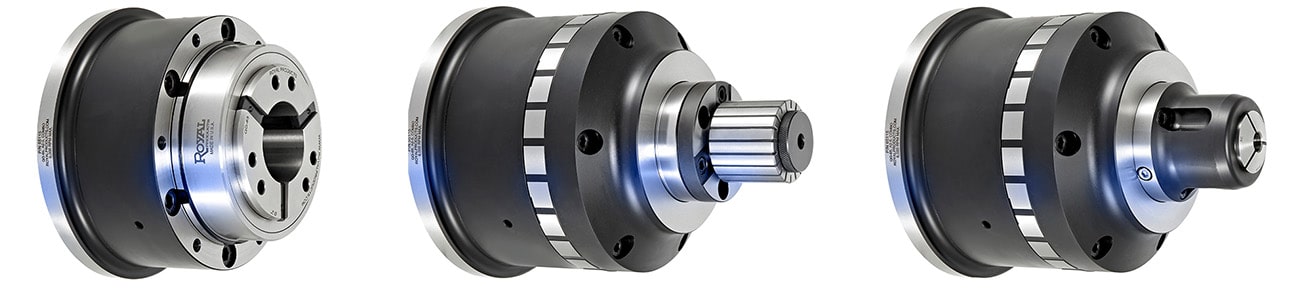

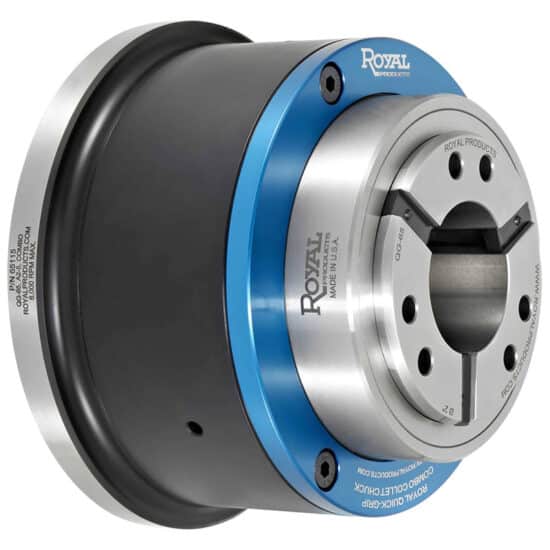

The Royal QG Combo Chuck represents the next generation of Royal’s industry-leading Accu-Length™ CNC Collet Chucks. Designed for maximum versatility and productivity, it combines a Quick-Grip™ Collet Chuck, I.D. Workholding System, and 5C Collet Chuck into a single, highly adaptable solution.

At its core, the Royal QG Combo Chuck utilizes Royal’s proven Quick-Grip™ Accu-Length™ technology, eliminating z-axis movement of both the collet and workpiece during actuation. This makes it exceptionally well-suited for both main spindle and sub-spindle applications, ensuring accurate and repeatable part transfers.

When internal gripping is required, the chuck can be converted into an optional 5C collet nose which will allow you to use Stand 5C OD and Rovi ID collets! We like to call this, having your cake and eating too!

Key Features & Benefits

• Wide Gripping Range: Each collet provides a generous 0.062″ gripping range, accommodating stock size variations without requiring additional collets.
• Parallel Workpiece Engagement: Royal QG collet segments remain parallel to the workpiece throughout the gripping cycle, providing full-length contact and superior holding power. This design enables more aggressive machining and improved chip removal capabilities.
• Accu-Length™ Precision: Unlike pullback-style combination chucks, the Royal QG Combo Chuck is built around Royal’s Accu-Length™ design. Because there is no axial movement during clamping, precise part positioning is maintained throughout machining and part transfer operations, making it an ideal solution for sub-spindle applications.
• Exceptional Accuracy: The chuck delivers guaranteed accuracy within 0.0002″ TIR when operating as a collet chuck. When configured for I.D. workholding, the mandrel can be dialed in to virtually zero runout for maximum precision.
• Heavy-Duty Construction: Built for demanding production environments, all major chuck components are hardened to Rc 61–63 for maximum rigidity, wear resistance, and long service life.
• Simple Installation: Each Royal QG Combo Chuck includes a custom-machined drawtube connector and all required mounting hardware, ensuring fast, hassle-free installation.

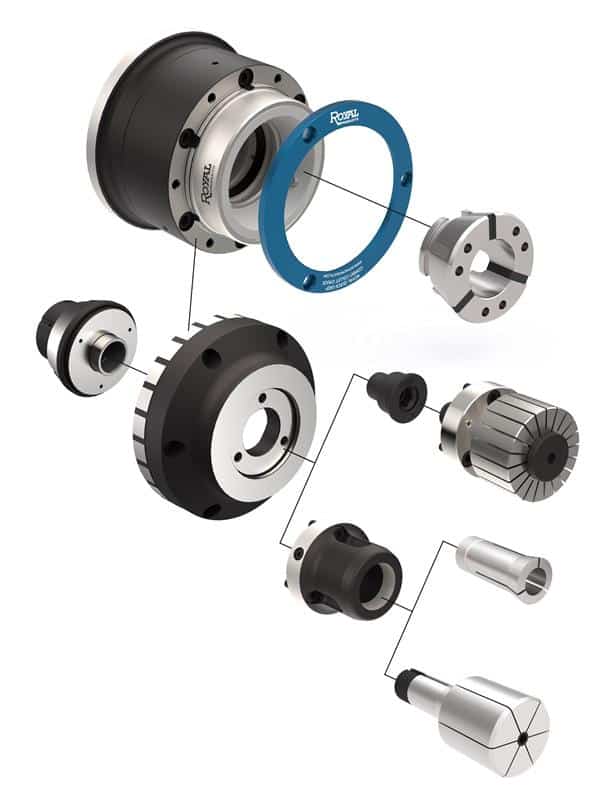

The Royal QG Combo Chuck eliminates the need for multiple dedicated chucking systems by combining external collet gripping, internal mandrel workholding, and optional 5C capability into a single platform. The result is faster changeovers, greater machining flexibility, improved accuracy, and increased productivity across a wide range of turning applications.
