Product Description

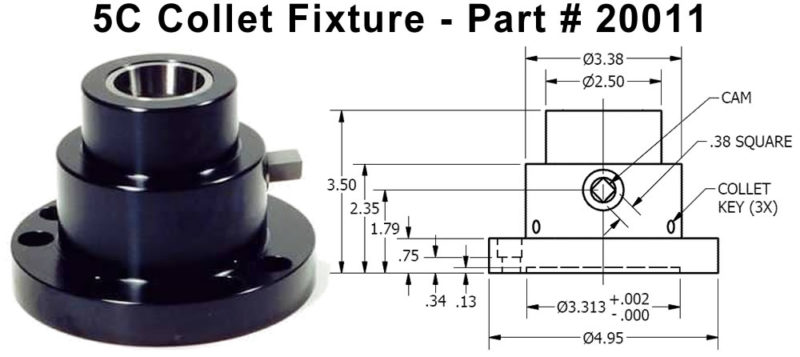

5C, 16C OR 3J SINGLE STATION MANUAL COLLET FIXTURES
These units can be used as stationary fixtures or mounted to a rotary fixture for 4th axis applications. Mounting holes are provided on all fixtures for easy mounting to your fixture of choice. Simply turn each knob 90° with the provided wrench to activate the cam, which in turn pushes a sleeve over the collet, enabling the clamping action. The stationary collet provides zero part movement (Dead Length).
Click on a tab below for more information about each Collet Fixture.
We only sell complete fixtures online.
If you need any of the individual parts listed below please call to order – (800) 423-5145
| Item | Quantity | Part Number | Part Name |
| 1 | 1 | 20011-000125 | 5C Main Body |
| 2 | 1 | 20011-000112 | 3/8″ Square Cam |
| 3 | 1 | 20011-000113 | Bushing |
| 4 | 1 | 20011-000114 | 5C Collet Sleeve |
| 5 | 11 | 20011-000118 | 10-32 x 1/2” Socket Set Screw |
| 6 | 1 | 20011-000119 | 1/8 x 3/4″ Dowel Pin |
| 7 | 4 | 20011-000124 | 10-32 x 1/2″ Socket Set Screw Modified |
| 8 | 1 | 20011-000122 | Cam Wrench With 3/8″ Socket |
We only sell complete fixtures online.
If you need any of the individual parts listed below please call to order – (800) 423-5145
| Item | Quantity | Part Number | Part Name |
| 1 | 1 | 20012-000188 | 16C Main Body |
| 2 | 1 | 20012-000181 | 1/2″ Square Cam |
| 3 | 1 | 20012-000182 | Bushing |
| 4 | 1 | 20012-000183 | 16C Collet Sleeve |
| 5 | 1 | 20012-000184 | 1/4-28 x 1/2″ Socket Set Screw |
| 6 | 1 | 20012-000186 | 3/16 x 7/8″ Dowel Pin |
| 7 | 3 | 20012-000194 | 1/4-28 x 1/2″ Socket Set Screw Modified |
| 8 | 1 | 20012-000185 | Cam Wrench With1/2″ Socket |
| 9 | 1 | 20012-000187 | 1/4-28 x 1/2″ Socket Set Screw Modified |
We only sell complete fixtures online.
If you need any of the individual parts listed below please call to order – (800) 423-5145
| Item | Quantity | Part Number | Part Name |
| 1 | 1 | 20013-000193 | 3J Main Body |
| 2 | 1 | 20013-000181 | 1/2″ Square Cam |
| 3 | 1 | 20013-000182 | Bushing |
| 4 | 1 | 20013-000192 | 3J Collet Sleeve |
| 5 | 1 | 20013-000184 | 1/4-28 x 1/2″ Socket Set Screw |
| 6 | 1 | 20013-000186 | 3/16 x 1″ Dowel Pin |
| 7 | 3 | 20013-000190 | 1/4-28 x 1/2″ Socket Set Screw Modified |
| 8 | 1 | 20013-000185 | Cam Wrench With1/2″ Socket |
| 9 | 1 | 20013-000187 | 1/4-28 x 1/2″ Socket Set Screw Modified |
Add To Cart
Scoll Down For Product Description
5C, 16C or 3J Single Station Collet Fixtures
$1,080.00 – $1,595.00
