SweatJet Copper Tube Fittings

SweatJet™

Easy to solder
Increases nozzle reliability by allowing use of short rigid hoses
Rated to 500 psi†
Allows SwivelMax, 1/4" Locline*, QPM Spray Tips and PressureMax Spray Tips to be used on copper tubing
Ideal for CNC Tool and Cutter Grinders, CNC Mill/Turn Centers and screw machines

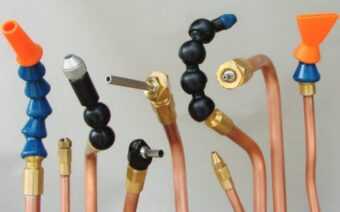

SweatJets allow a wide variety of nozzles to be mounted to copper tubing.

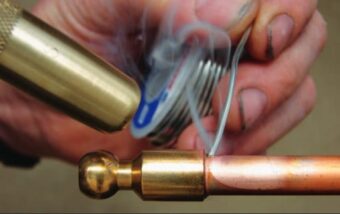

SweatJets are easy to solder using a propane torch.

DIMENSIONS IN INCHES (except as noted)

*BALL TYPE (fits SwivelMax or 1/4″ Loc-Line)**
Part No.	Tubing Size “A”	Outlet Ball Fits:	L	F	Dia “D”	Dia “d”	Pkg Qty	Configuration
SJ14040	1/4	SwivelMax	0.99	0.38	0.38	0.22	5
SJ14045	1/4	1/4″ Loc-Line	0.52	0.38	0.38	0.22	5
SJ14050	5/16	SwivelMax	1.05	0.44	0.44	0.22	5
SJ14055	5/16	1/4″ Loc-Line	0.90	0.44	0.44	0.28	5
SJ14060	3/8	SwivelMax	1.15	0.50	0.49	0.22	5
SJ14065	3/8	1/4″ Loc-Line	1.08	0.56	0.50	0.28	5
THREADED TYPE (fits QPM SprayTips)
Part No.	Tubing Size “A”	Outlet Thread “E”	L	F	B	“C” Hex	Pkg Qty	Configuration
SJ14130	3/16	M5 x .8	0.56	0.31	0.25	0.25	5
SJ14140	1/4	M6 x 1.0	0.62	0.37	0.25	0.31	5
SJ14150	5/16	M8 x 1.25	0.81	0.50	0.31	0.38	5
SJ14160	3/8	1/8 NPT/BSPT	0.94	0.56	0.25	0.50	5
PressureMax TYPE (fits PressureMax SprayTips)
Part No.	Tubing Size “A”	Outlet Thread “E”	L	F	B	“C” Hex	Pkg Qty	Configuration
SJ14240	1/4	5/16-24 UNJF	0.68	0.38	0.20	0.44	5
SJ14245	1/4	7/16-20 UNJF	0.75	0.42	0.20	0.56	5
SJ14250	5/16	7/16-20 UNJF	0.75	0.44	0.20	0.56	5
SJ14255	5/16	1/2 -20 UNJF	1.0	0.56	0.25	0.62	5
SJ14260	3/8	7/16-20 UNJF	0.75	0.44	0.20	0.56	5
SJ14265	3/8	1/2 -20 UNJF	1.0	0.56	0.25	0.62	5
† DO NOT EXCEED MAXIMUM PRESSURE RATING OF MATING HOSE SYSTEM * LOC-LINE IS A TRADEMARK OF LOCKWOOD PRODUCTS INC. MANUFACTURER RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE OR OBLIGATION.
