Product Description
Collets For Mill Applications – Internal ID Xpansion® Clamps
The ID Xpansion clamp is the ideal way to hold multiple parts on an inside diameter for multiple machining on a vertical machining center or a horizontal machining center
These machinable clamps are produced in 10 sizes and can hold internal diameters from under 3/16ths inches to over 4 inches. They use a heat-treated, tapered screw for expansion.
The flange diameter of the clamp is held to a close tolerance for precision locating in a machined pocket on work cubes and fixture plates.
The customer machines the mild steel clamp to match the bore of the part ensuring proper fit. Often times the clamps can be remachined for different size jobs.
One of the benefits of these low profile clamps is holding many lathe parts, for secondary machining, on one compact setup. They are quickly tightened with a hex key, torque driver or can be mated to hydraulic pull cylinders for automation.
- Low Profile
- Ideal for Secondary Operations on Lathe Parts
- Easily Machined to Size on Lathe or Mill
- Excellent for Palletized Setups
- Allows More Parts Per Workcube or Fixture Plate
- Heat-Treated and Coated Screw for Long Life
- Clamp Body Made of Mild Steel for Machinability
- Tighten with Hex Key or Hydraulic Pull Cylinders (Drill clearance hole for longer bolt into cylinder)
- Made in U.S.A. by Mitee-Bite
Machining and Installation
- Expand clamp approximately .002 over relaxed diameter and machine to fit workpiece bore, either on lathe or mill.
- If machining the clamp on a lathe use the nut provided, on the back of the clamp, to tighten the tapered screw. This nut is used only to machine the clamp.
- Range of expansion .008 to .020 depending upon size.
- Machine a pocket, in the fixture, for the close tolerance “E” dimension and drill and tap mounting holes per “H” column. Drill and tap a hole from the “I” column in the center of the pocket for the tapered screw.
- A recessed dowel pin may be installed into the flange for additional rigidity if required.

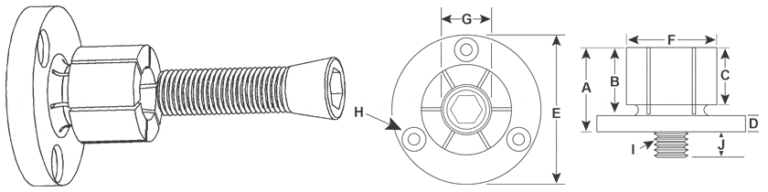

Internal ID Xpansion® Clamps Chart (Measurements in inches unless otherwise specified)
| Part Number | Model Number | A | B | C | D | E +.000 -.002 | F | G+ | H* | I | J | Torque (Ft/lbs.) | Holding Force |
| 31000 | #00 | .42 | .30 | .24 | .12 | .787 | .29 | .16 | 2-56 on .540 BHC | 2 – 56 | .16 | 0.5 | 250 |
| 31050 | #0 | .86 | .63 | .59 | .23 | 1.170 | .49 | .28 | 6-32 on .825 BHC | 8 – 32 | .30 | 3.6 | 950 |
| 31100 | #1 | .98 | .75 | .59 | .23 | 1.240 | .56 | .48 | 6-32 on .910 BHC | 1/4 – 20 | .50 | 13.3 | 1900 |
| 31150 | #2 | .98 | .75 | .59 | .23 | 1.476 | .79 | .53 | 6-32 on 1.140 BHC | 5/16 – 18 | .56 | 27.6 | 2500 |
| 31200 | #3 | 1.13 | .88 | .69 | .25 | 1.968 | 1.06 | .71 | 8-32 on 1.550 BHC | 3/8 – 16 | .71 | 49.3 | 4500 |
| 31250 | #4 | 1.25 | 1.0 | .81 | .25 | 2.205 | 1.39 | .90 | 8-32 on 1.790 BHC | 1/2 – 13 | .71 | 120.0 | 5900 |
| 31300 | #5 | 1.56 | 1.25 | 1.06 | .31 | 2.736 | 1.65 | 1.15 | 10-32 on 2.200 BHC | 5/8 – 11 | .79 | 224.0 | 10,000 |
| 31350 | #6 | 1.56 | 1.25 | 1.06 | .31 | 2.972 | 2.03 | 1.15 | 10-32 on 2.515 BHC | 5/8 – 11 | .79 | 224.0 | 10,000 |
| 31400 | #7 | 1.79 | 1.48 | 1.27 | .31 | 4.232 | 3.06 | 1.15 | 1/4-20 on 3.646 BHC | 5/8 – 11 | .79 | 224.0 | 10,000 |
| 31450 | #8 | 1.79 | 1.48 | 1.27 | .31 | 5.232 | 4.06 | 1.15 | 1/4-20 on 4.648 BHC | 5/8 – 11 | .79 | 224.0 | 10,000 |
| 31500 | #9 | 1.79 | 1.48 | 1.27 | .31 | 5.232 | 6.89 | 1.15 | 1/4-20 on 4.648 BHC | 5/8 – 11 | .79 | 224.0 | 10,000 |
| *31550 | #10 | 1.79 | 1.48 | 1.27 | .31 | 6.0 | 9.85 | 1.15 | 1/4-20 on 5.250 BHC | 5/8 – 11 | .79 | 125.0 | 6,000 |
G+ Minimum diameter the “F” dimension can be machined or turned down to.
H* – (3) Mounting Screws Included.
*31550 – Clamp made from 7075-T6 aluminum stock.
