Combo CNC Bar Pullers

Automate Any CNC Lathe

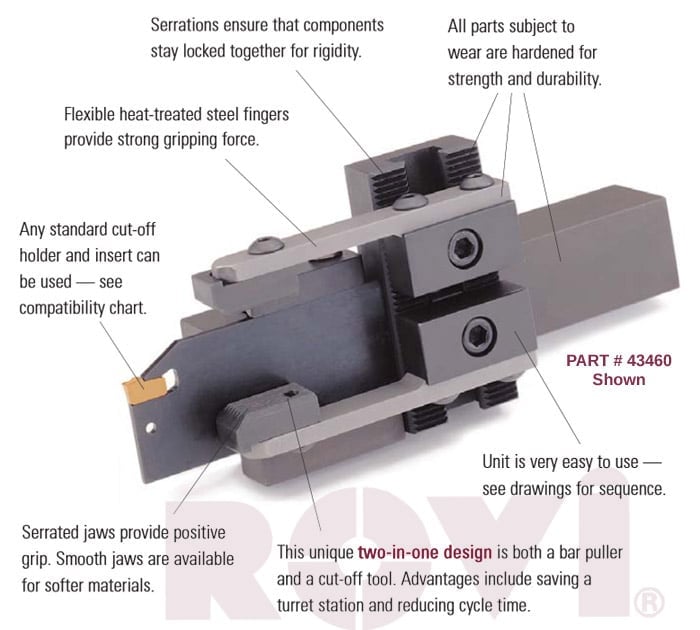

The Royal Combo CNC Bar Puller is both a bar puller and a cut-off tool in one unit. Benefits of this design include:
  1. Saving a turret station by combining two tools into one.
  2. Reduced cycle time because the turret does not need to index between the cut-off and pulling operations.
The Royal Combo CNC Bar Puller is designed for use on all CNC lathes, and is very easy to set up and use. Flexible heat-treated steel fingers provide strong grip force for pulling round, hex and square stock. Unit comes standard with serrated jaws and one blank spindle bushing. Order cut-off tool and insert separately. Royal offers Kennametal tooling, but the Combo Bar Puller is compatible with all major brands of cut-off holders and inserts.
  • The Royal Combo CNC Bar Puller is both a bar puller and a cut-off tool in one unit. Benefits of this design include:
    • Saving a turret station.
    • Reduced cycle time because the turret does not need to index between the cut-off and pulling operations.
  • Very easy to setup and use.
  • Unit can pull round, square, and hex stock.
  • Compact design enables it to be used on most CNC lathes.
  • Each combo bar puller includes one set of standard jaws and one blank spindle bushing. Order cut-off insert and holder separately.
royal combo

How it works:

See it in action:

Cycle times are reduced because the turret does not need to index
between cut-off and pulling operations.

  • Royal Cut-off holder and insert can be purchased separately below
  • Bar puller accepts many other popular brands of holders and inserts (See Compatibility Chart below).
  • Cut-off holders from other manufacturers must be slightly modified before being used with bar puller.

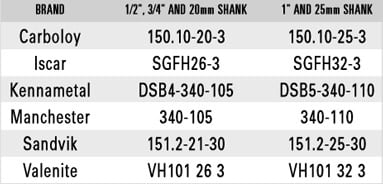

Compatibility Chart

royal combo table
Rovi

Select Product Below to Order

Showing all 4 results

  • Combo Model Replacement Parts Select options Quick View

    CNC Bar Puller Combo Model Replacement Parts

     $139.00 – $245.00
    Select options
    This product has multiple variants. The options may be chosen on the product page
  • Holder with Insert Select options Quick View

    Holder with Insert*

     $270.00 – $294.00
    Select options
    This product has multiple variants. The options may be chosen on the product page
  • Royal Combo CNC Bar Pullers Select options Quick View

    Royal Combo CNC Bar Pullers (Metric)***

     $1,840.00 – $1,935.00
    Select options
    This product has multiple variants. The options may be chosen on the product page
  • Royal Combo CNC Bar Pullers Select options Quick View

    Royal Combo CNC Bar Pullers***

     $1,585.00 – $1,885.00
    Select options
    This product has multiple variants. The options may be chosen on the product page
