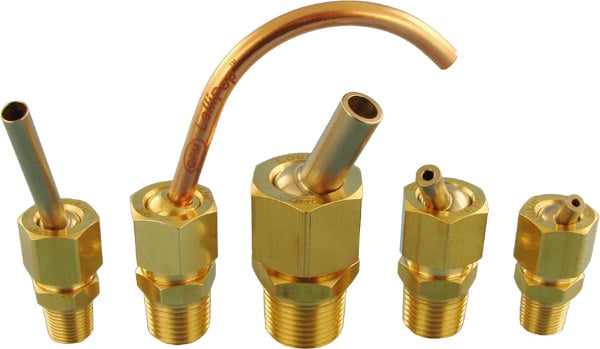

LockJet™
Lockable High Pressure Coolant Nozzle
- Aimable and lockable
- Fits NPT and BSPT ports
- Ideal for applications where the nozzle could get bumped or knocked out of position
- Rated to 1500psi (100 bar)
- Easily interchangeable balls
- Choose the orifice and extension length to suit your application
- Available with bendable copper extension tubes
DIMENSIONS IN INCHES (except as noted)
| Configuration (Complete Nozzle) | Size "E" | Part No. Complete Nozzle* | Pkg. Qty. | • | Orifice Dia. "d" | Extension "L" | "F" ma (degrees) | Part No. Ball Only | Pkg. Qty. | Configuration (Ball Only) |
 |
 |
LJ18110 | 5 | • | 0.062 | 0.25 | 33º | SSB23310 | 5 |  |
| LJ18120 | 5 | • | 0.062 | 1.25 | 28º | SSB23320 | 5 | |||
| LJ18130 | 5 | • | 0.086 | 0.25 | 33º | SSB23330 | 5 | |||
| LJ18140 | 5 | • | 0.086 | 1.25 | 28º | SSB23340 | 5 | |||
| LJ18150 | 5 | • | 0.117 | 0.50 | 33º | SSB23350 | 5 | |||
| LJ18160 | 5 | • | 0.117 | .1.25 | 28º | SSB23360 | 5 | |||
| LJ18165 | 5 | • | 0.125 | 6.0 | 28º | LP05526 | 5 | |||
| LJ18170 | 5 | • | 0.160 | 0.50 | 28º | SSB23370 | 5 | |||
| LJ18180 | 5 | • | 0.160 | 1.25 | 28º | SSB23380 | 5 | |||
 |
 |
LJ18210 | 5 | • | 0.062 | 0.38 | 33º | SSB23410 | 5 |  |
| LJ18220 | 5 | • | 0.062 | 1.25 | 33º | SSB23420 | 5 | |||
| LJ18230 | 5 | • | 0.086 | 0.38 | 33º | SSB23430 | 5 | |||
| LJ18235 | 5 | • | 0.086 | 1.25 | 33º | SSB23435 | 5 | |||
| LJ18240 | 5 | • | 0.117 | 0.50 | 33º | SSB23440 | 5 | |||
| LJ18245 | 5 | • | 0.117 | 1.25 | 33º | SSB23445 | 5 | |||
| LJ18255 | 5 | • | 0.125 | 6.0 | 33º | LP05506 | 5 | |||
| LJ18260 | 5 | • | 0.160 | 0.50 | 33º | SSB23460 | 5 | |||
| LJ18265 | 5 | • | 0.160 | 1.25 | 33º | SSB23465 | 5 | |||
| LJ18270 | 5 | • | 0.220 | 0.50 | 27º | SSB23470 | 5 | |||
| LJ18275 | 5 | • | 0.220 | 1.25 | 27º | SSB23475 | 5 | |||
 |
 |
LJ18305 | 5 | • | 0.125 | 6.0 | 38º | LP05514 | 5 |  |
| LJ18310 | 5 | • | 0.160 | 0.75 | 33º | SSB23510 | 5 | |||
| LJ18320 | 5 | • | 0.160 | 1.50 | 33º | SSB23520 | 5 | |||
| LJ18330 | 5 | • | 0.187 | 6.0 | 33º | LP05516 | 5 | |||
| LJ18340 | 5 | • | 0.220 | 0.75 | 27º | SSB23540 | 5 | |||
| LJ18350 | 5 | • | 0.220 | 1.50 | 27º | SSB23550 | 5 | |||
| LJ18360 | 5 | • | 0.280 | 0.75 | 23º | SSB23560 | 5 | |||
| LJ18370 | 5 | • | 0.280 | 1.50 | 23º | SSB23570 | 5 | |||
| * Complete nozzle part no. includes body, nut and ball. | ||||||||||
| Material: Body and Nut: Brass | Maximum Operating Temperature: 300°F (150°C) | Maximum Pressure: 1500 PSI (100bar) | SSB Balls: Stainless Steel | LP Balls: Ball - Brass • Tube - Copper • Solder - Lead Free |
Select desired product from links below.
-
LockJet™ Coolant Nozzles
Price range: $144.38 through $202.45 Select options This product has multiple variants. The options may be chosen on the product page -
LockJet Coolant Nozzles (BALL ONLY)
Price range: $45.14 through $99.97 Select options This product has multiple variants. The options may be chosen on the product page
