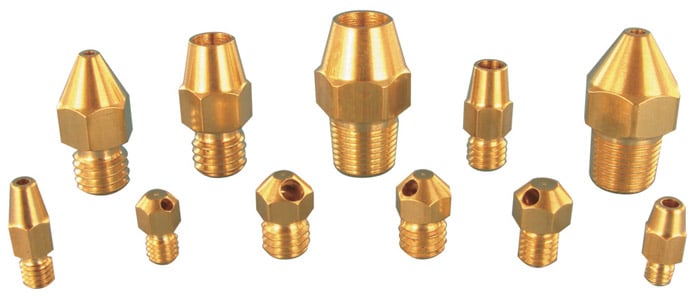

SprayTips for Tapped Nozzles

QPMScrew-In, Brass Spray Tips For Use In Tapped-Ball Nozzles

  • Available in various orifice diameters
  • Ideal for concentrating the coolant stream at the cutting edge
  • Angled outlet SprayTips enable aiming outside a nozzle’s normal range of motion
  • SprayTips can be used in a wide variety of nozzles including;

ScrewBalls, JetBolts, BrassBalls, BlackEyes, TurretJets, JetTubes, SweatJets, CapJets & BugEyes.

  • Material: Brass
  • Maximum Pressure: 500 psi (33 bar)
  • Maximum Operating Temperature: 300° F (150° C)

DIMENSIONS IN INCHES (except as noted)

TypePart No.Thread “E”Orifice Dia. “d”LA“C” HexPkg QtyConfiguration
ST16510M3.5 x .60.0620.420.143/165
ST16515M3.5 x .60.0860.420.143/165
ST16520M4 x .70.0620.540.183/165
ST16525M4 x .70.0860.540.183/165
ST16530M5 x .80.0620.630.211/45
ST16535M5 x .80.0860.630.211/45
ST16540M5 x .80.1170.630.211/45
ST16545M6 x 1.00.0620.630.211/45
ST16550M6 x 1.00.0860.630.211/45
ST16555M6 x 1.00.1170.630.211/45
ST16560M6 x 1.00.1500.630.211/45
ST16565M8 x 1.250.0620.800.303/85
ST16570M8 x 1.250.0860.800.303/85
ST16575M8 x 1.250.1170.800.303/85
ST16580M8 x 1.250.1600.800.303/85
ST16585M8 x 1.250.2200.800.303/85
ST166101/8NPT/BSPT0.0620.900.371/25
ST166151/8NPT/BSPT0.0860.900.371/25
ST166201/8NPT/BSPT0.1170.900.371/25
ST166251/8NPT/BSPT0.1600.900.371/25
ST166301/8NPT/BSPT0.2200.900.371/25
ST166351/8NPT/BSPT0.2800.900.371/25
ST16650M3.5 x .60.0620.320.143/165
ST16655M4 x .70.0620.360.183/165
ST16660M5 x .80.0860.420.211/45
ST16665M6 x 1.00.0860.420.211/45
ST16670M6 x 1.00.1170.420.211/45
